A smarter way to luxury

With a PVC drain body, the ShowerLine linear shower drain is the perfect choice for tub-to-shower conversions and projects that need to maximize the return on investment while delivering sophisticated style.

man installing drain

Tub-to-Shower Conversions

Most efficient, flexible way to modernize a shower.

stacks of quarters

Simple, Faster, Installation

The latest in shower innovation that saves time and labor.

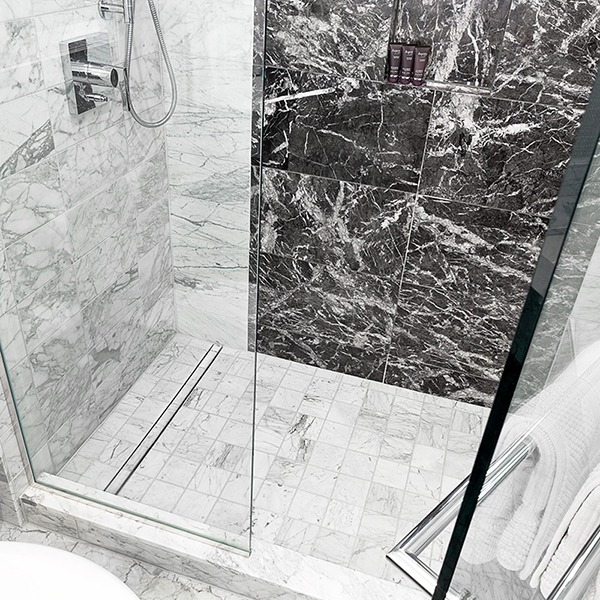

Quick Drain Close up of a installed linear drain

Hospitality

The go-to linear solution for hospitality applications.





ShowerLine Details

Key Features

  • QuickDrain ShowerLine linear shower drain bodies are made of PVC material, making it a very cost-effective option
  • Ideal choice for residential and hospitality markets and offered in multiple waste outlet orientations
  • Internally sloped trough ensures no stagnant water sitting in the trough at any time, eliminating hard water build-up
  • Length adjustability of drain trough with use of trough extensions to accommodate finished openings from 26 in. to 72 in.
  • To accommodate larger showers, ShowerLine Linear Shower Drains can be linked together
  • Recommend the shower drain cover extend the entire length of the shower pan, which would span from vertical to vertical surface (wall to wall, wall to curb, or wall to partition/glass)
  • ShowerLine linear drain body waterproofing accessory kits are sold separately. Available options include topical sheet, topical liquid, hot mop and CPE/PVC liner
  • Drain capacity for 2 in. outlet is 12 GPM in a shower pan with curb and 5 GPM in a shower pan drain placed across entry. Note: Actual volume is limited by the plumbing lines and P-trap
  • Kit includes cover channel with appropriate finish to match decorative drain cover

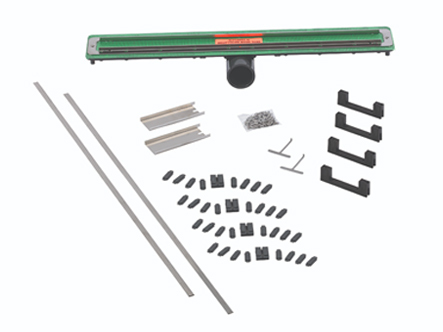

Parts / Included

  • Leveling Brackets: (4)
  • Height Adjustable Spacers: (4-8) dependent on body length
  • Clamping Collar: (1)
  • Cover Channels: (2)


  • Trough Extensions: (2)
  • Screws based on trough length
  • Cover Removal Keys: (2)

Selecting Your ShowerLine System Components

Choose a Drain Body

Available in 10 standard stock lengths

Custom sizing, outlet orientations and hot mop options are available.

Contact us for more information.

SKU Rough Opening Dimensions Outlet Orientation Cover Size Required
PVC2430D15 26.5" - 32" Centered 32" View Details
PVC2430D15-SWO 26.5" - 32" Centered Side Waste Outlet 32" View Details
PVC2430D20 26.5" - 32" Centered 32" View Details
PVC2430D20-SWO 26.5" - 32" Centered Side Waste Outlet 32" View Details
PVC3240D20 34.5" - 40" Centered 40" View Details
PVC3240D20-SWO 34.5" - 40" Centered Side Waste Outlet 40" View Details
PVC4048D20 42.5" - 48" Centered 48" View Details
PVC4856D20 50.5" - 56" Centered 56" View Details
PVC5664D20 58.5" - 64" Centered 64" View Details
PVC6472D20 66.5" - 72" Centered 72" View Details

Choose a Decorative Cover & Finish

QuickDrain offers stylish shower drain cover designs and finishes, including the exclusive Michael Graves Cosmo and Stream designs.

Linear Decorative Covers & Finishes

Browse Covers & Finishes

Complete Your Shower System

Identify Shower Pan and Waterproofing Method

Shower Pans

To make installation even easier, consider QuickSlope PET (polyethylene terephthalate) panels, available for both curbed and curbless applications.

Made from 100% recycled plastic bottles, QuickSlope panels considerably reduce installation time and labor cost when used in place of a traditional reinforced mortar shower pan.

Waterproofing

ShowerLine Assembly kits include standard liquid waterproofing accessories.

Waterproofing Options

  • Topical Sheet
  • Topical Liquid
  • Hot Mop
  • CPE/PVC Liner

FAQs & Videos

All ShowerLine linear shower drain bodies are made from PVC with an integrated sloped trough.

ShowerLine linear drain waterproofing accessories are purchased separately. Available options include topical sheet, topical liquid, hot mop and CPE/PVC liner. HOTMD23-ABS or HOTMD23-CI must be used for HOT-MOP or CPE/PVC liner installation). Contact Us or call 1-866-998-6685 for more information.

The main differences between ProLine and ShowerLine linear shower drains are the materials that the drain bodies are made of. The ProLine linear shower drain body is made of 316L marine grade stainless steel. ShowerLine is made of PVC with an integrated clamping collar. ProLine is only compatible with topical liquid waterproofing when attached directly to the DWV. ShowerLine is compatible with topical sheet or topical liquid.

First, cut and remove the ¾” OSB subfloor within the shower footprint without damaging the floor joists beneath. Next, add necessary subfloor blocking to drop in ¾” OSB between floor joists and secure. Next step depends on the orientation of the floor joist. If floor joists run perpendicular to drain placement, then installer would have to check with local building code in regards to modifying floor joists to accommodate the internally sloped drain trough (ShowerLine located against the back wall). If floor joists run parallel to drain placement, then installer will have to properly block approximately 10” on center to support the internally sloped drain trough and subfloor adjacent to drain flange (ShowerLine located against the back wall). If using the PET ADA Slopes those would sit flush against the drain flange and terminate at the entry/threshold. Check finished floor elevations to determine if additional substrates are necessary for buildup.

The ProLine and ShowerLine linear shower drain covers are interchangeable and the finished height can be adjusted with the use of the PVC spacers provided with every shower drain kit.

The ProLine and ShowerLine linear shower drain covers are designed to be trimmed to fit the finished dimensions of a shower. The cover would be measured and instruction for method of cutting are listed below. Proper PPE is always recommended.
Angle Grinder: If using an angle grinder, do not allow cover to overheat. Keep the cover cool by wetting while making the cut with appropriate metal cut-off wheel. Ensure wheel is suitable for cutting stainless steel.
Bandsaw: When cutting with a bandsaw, apply painter’s tape to protect pvd/powder coat finish. Ensure blade is suitable for cutting stainless steel.
Hacksaw: When cutting with a hacksaw, apply painter’s tape to protect pvd/powder coat finish. Ensure blade is suitable for cutting stainless steel.

Have a Question?

Ask A Tech

Accessories

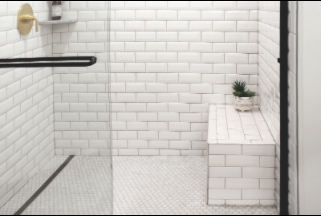

QuickDrain Shower Bench
